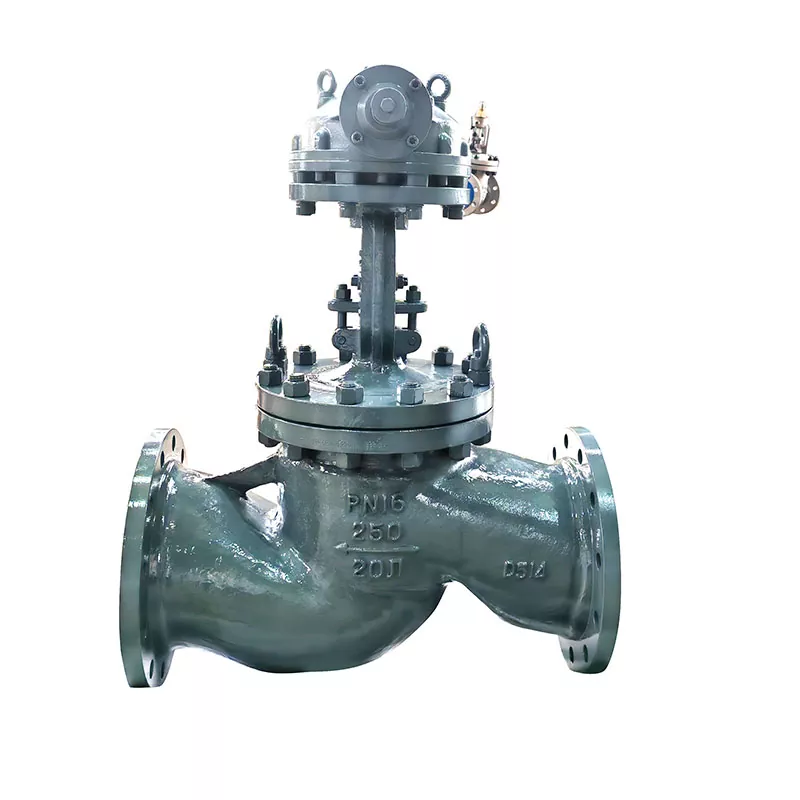

Heavy Duty Manual Gear Operated Industrial Globe Valve

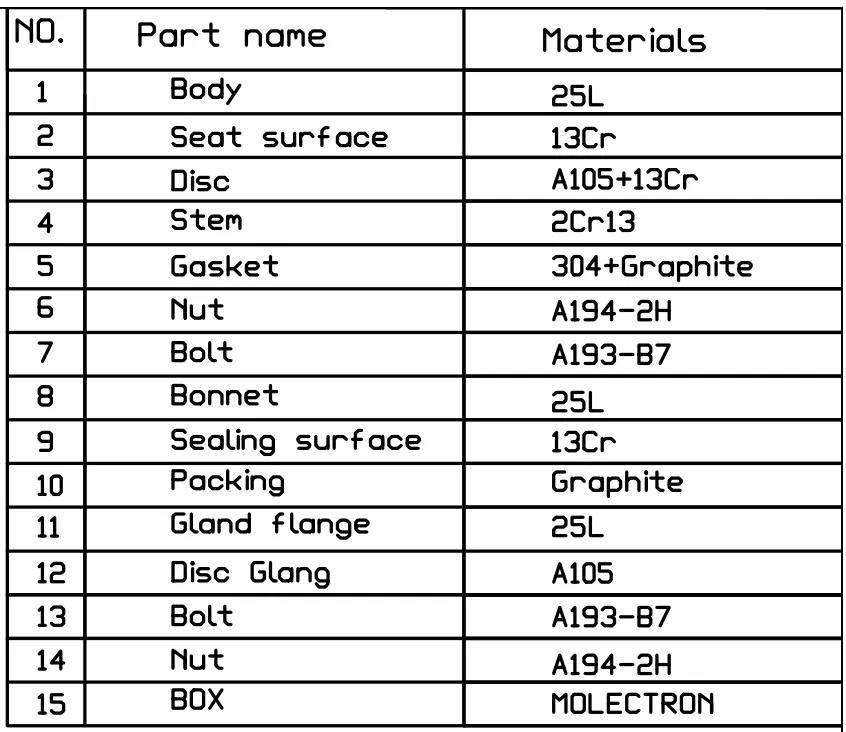

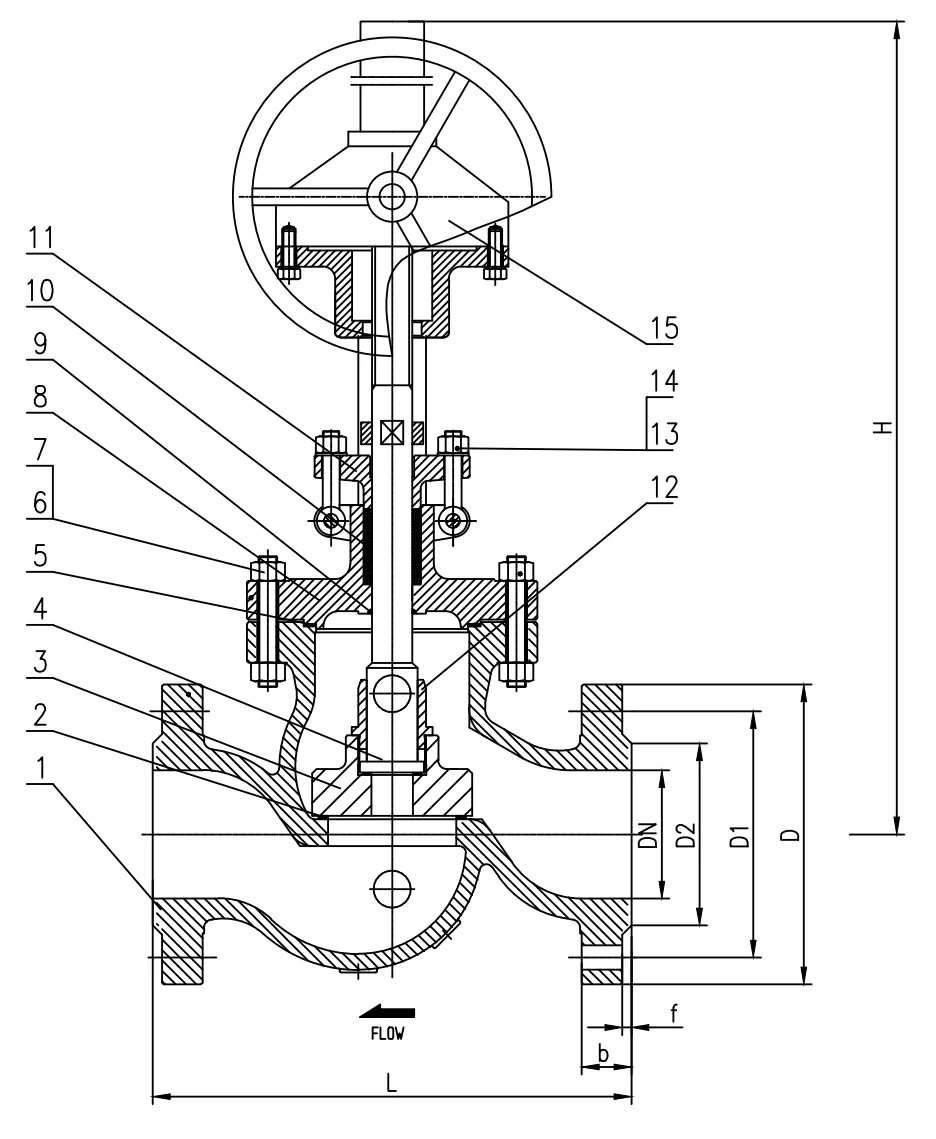

Engineered for brutal operational cycles, the Heavy Duty Manual Gear Operated Industrial Globe Valve from Hanno Valve features enhanced wall thicknesses and reinforced flange necks to absorb pipe stresses. The internal valve train consists of a 2Cr13 stainless stem, an A105+13Cr disc assembly, and a two‑piece self‑aligning gland flange that prevents stem packing side‑loading. Sealed with high‑density graphite rings and a 304+graphite composite gasket, the valve prevents media leakage during frequent flow throttling. Hanno Valve subjects all castings to rigorous physical‑chemistry analysis, hardness testing, and seat leakage tests, ensuring dependable performance for industrial end‑users globally.

Technical Specifications

Core Advantages & Competitive Comparison

• Reinforced Structural Wall Thickness: Exceeds minimum API 600 wall thickness requirements, resisting structural distortion caused by thermal piping expansion and heavy fluid pressure surges.
• Heavy‑Duty MOLECTRON Gear Reduction: Heavy Duty Manual Gear Operated Industrial Globe Valve delivers smooth mechanical output without backlash, allowing micro‑metering of fluid flow rates.
• Superior Casting Density: In‑house precoated sand process eliminates surface defects and internal sand holes common in cheap commercial castings.

Heavy Industrial Scenarios

• Mining & Slurry Transportation: Abrasive tailings water control and mineral washing plants.
• Fertilizer & Chemical Complexes: High‑concentration chemical transfer lines.
• Paper & Pulp Mills: Black liquor and high‑temperature digestion fluid lines.

Testing, Inspection and Warranty

• Inspection Protocol: 100% Shell hydrostatic test at 1.5x nominal pressure; seat test at 1.1x nominal pressure.
• Quality Certifications: ISO9001, API 600, CE, TS License, TC 010/032.
• Warranty & Service: 18‑month warranty; lifetime technical advisory and spare parts support.

Ordering & Delivery Information

• Packaging Protection: End caps attached to flange faces, wrapped in bubble wrap, enclosed in sturdy export wooden crates.
• Lead Time: 20‑30 days upon order confirmation.
• Custom Service: OEM logo etching, customized paint colors (epoxy / polyurethane), and special flange drilling.

Frequently Asked Questions (FAQ)

What makes this valve "heavy duty" compared to standard globe valves?

Heavy Duty Manual Gear Operated Industrial Globe Valve features increased wall thickness, reinforced bonnet flanges, heavy‑duty stem threading, and high‑tensile alloy bolting.

Can the gland packing be adjusted while the valve is in service?

Yes, the two‑piece gland flange allows uniform external packing adjustment to stop stem leaks immediately without shutting down the pipeline.

How does Hanno ensure casting quality for heavy‑duty industrial valves?

We use precoated sand molds, NDT flaw detection, hardness testing, and spectral analysis on every batch of cast steel.
