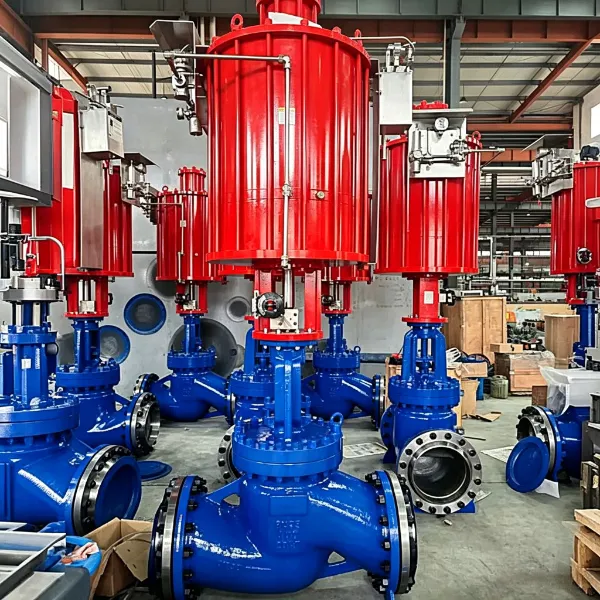

Pneumatic globe valve

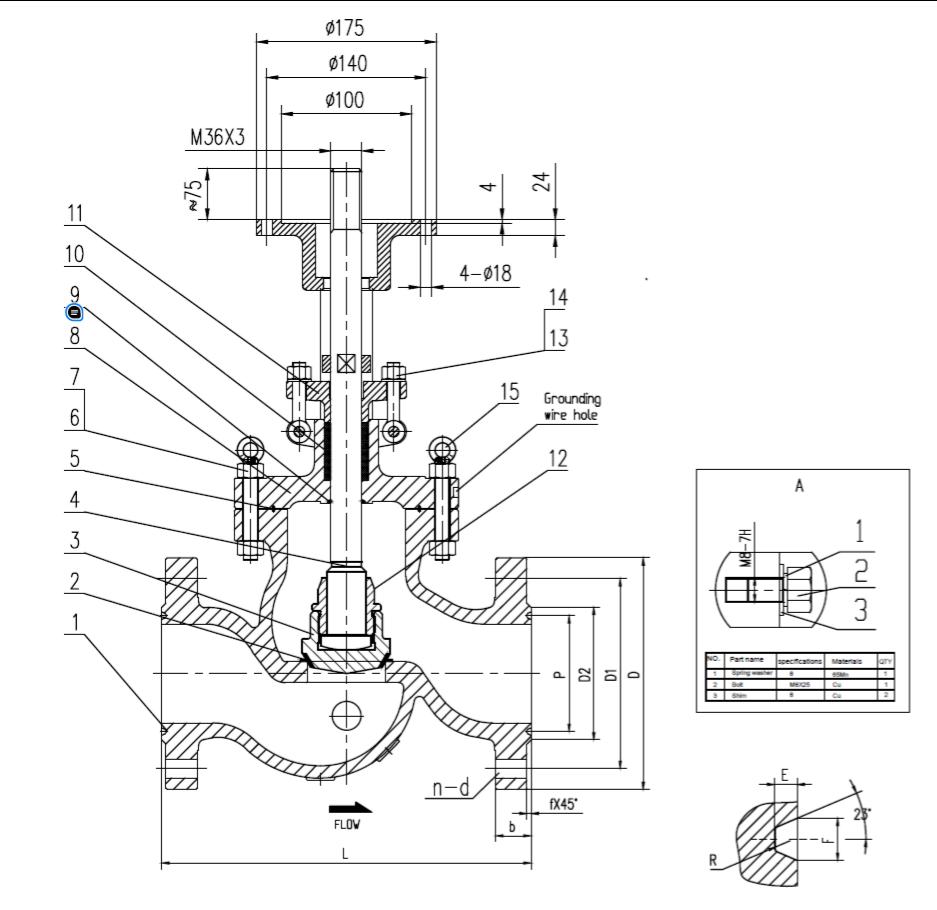

A pneumatic globe valve is mainly composed of a valve body, bonnet, stem, disc, sealing seat, packing system, and pneumatic actuator. When the actuator receives a control signal, it drives the stem movement to open or close the valve. The linear movement structure helps achieve accurate flow control and reliable shut-off performance.

The globe valve structure provides a relatively simple design compared with gate valves, making manufacturing and maintenance more convenient. The sealing surfaces are designed to reduce direct sliding during operation, helping minimize wear and maintain stable sealing performance during long-term service.

Working Principle of Pneumatic Globe Valve

The working principle is based on the vertical movement of the valve disc. When the pneumatic actuator pushes the stem downward, the disc contacts the seat surface and blocks the medium flow. When the actuator lifts the stem, the disc separates from the seat and allows fluid to pass through.

The linear travel movement makes pneumatic globe valves suitable for applications requiring frequent operation, automatic control, or precise adjustment of fluid flow.

Key Features of Pneumatic Globe Valve

· Pneumatic operation: Enables remote control and integration with industrial automation systems.

· Reliable sealing structure: The disc and seat design provides stable shut-off performance.

· Compact height: The valve disc stroke is relatively short compared with gate valves, reducing overall valve height.

· Convenient maintenance: The globe valve structure allows easier inspection and component replacement.

· Durable material options: Different materials can be selected according to operating conditions.

Material Specification

Technical Parameters

Pneumatic Globe Valve vs Gate Valve

Applications of Pneumatic Globe Valve

Pneumatic globe valves are commonly used in industrial piping systems where automatic shut-off and flow control are required. Typical applications include:

· Power generation systems

· Chemical processing industries

· Petroleum and natural gas systems

· Steam and thermal systems

· Industrial process pipelines

About Hengnuo Valve

Zhejiang Hengnuo Valve Manufacturing Co., Ltd. is a professional valve manufacturer located in Lishui, Zhejiang, China. With more than 25 years of manufacturing experience, Hengnuo Valve specializes in gate valves, check valves, globe valves, and power station valves.

The company has a production area of 18,000㎡ and more than 150 employees, including over 32 senior technicians. Hengnuo Valve owns its foundry and applies precoated sand casting technology to improve casting quality and production efficiency.

Hengnuo Valve has obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, Russia TC 010/032 certification, CE certification, TS China special equipment manufacture license certification, and API 600 certification.

FAQ About Pneumatic Globe Valve

Q1: What is the main function of a pneumatic globe valve?

A pneumatic globe valve is mainly used for automatic shut-off, flow regulation, and fluid control in industrial piping systems.

Q2: Can the pneumatic actuator be customized?

Yes. The actuator configuration can be selected according to operating conditions, control requirements, and application environments.

Q3: What is the difference between a globe valve and a gate valve?

A globe valve is more suitable for flow regulation and frequent operation, while a gate valve is mainly designed for full opening or full closing applications.

Q4: Does Hengnuo Valve provide OEM valve manufacturing?

Yes. Hengnuo Valve provides industrial valve manufacturing services according to customer requirements and technical specifications.
