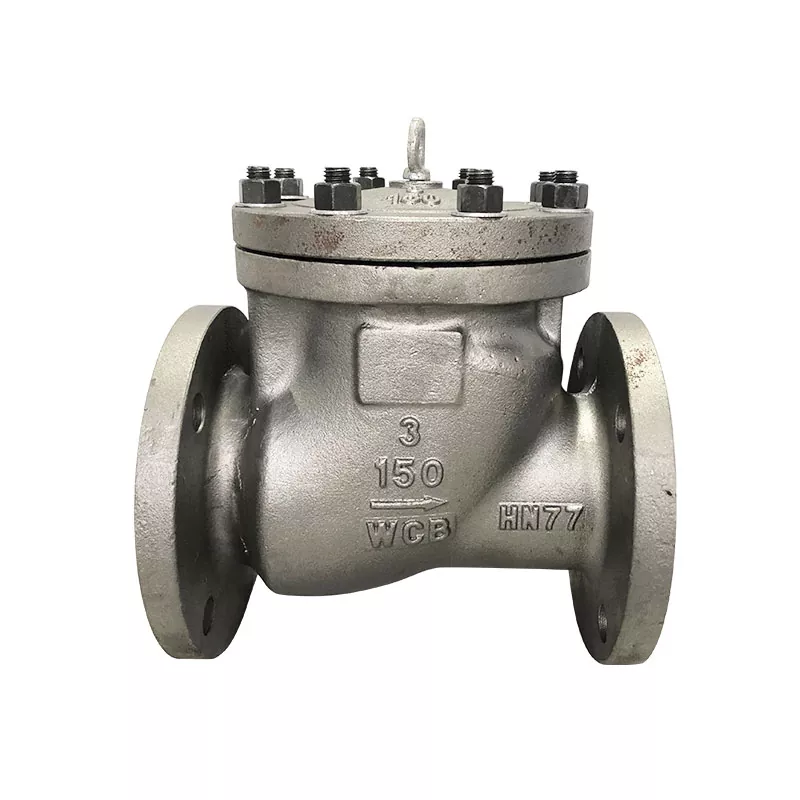

In industrial sectors such as oil refining, petrochemicals, and pipeline transportation, check valves play an essential role in preventing medium backflow and protecting critical equipment like pumps and compressors. Among the various standards available, the API (American Petroleum Institute) standard system represents one of the most widely adopted technical specifications globally. This article provides a hands-on guide covering the core API check valve standards, key selection criteria, installation best practices, and testing requirements.
A common point of confusion is the difference between API 594 and API 6D. They address entirely different application scenarios.
API 594 covers wafer and lug-type check valves used in process piping, primarily found in refineries, chemical plants, and topside offshore facilities. It applies to dual-plate, single-plate, and tilting-disc designs, with sizes ranging from NPS 2 to NPS 48 and pressure classes from Class 150 to 2500.
API 6D, on the other hand, is the standard for pipeline valves used in long-distance transmission systems that transport crude oil, natural gas, and refined products. It includes swing-type, piston-type, and dual-plate check valves, with sizes up to NPS 60 or larger, and imposes stricter testing requirements.
Selection Advice: If your project involves in-plant piping within a refinery or chemical complex, refer to API 594. If it involves transmission lines connecting stations, the API 6D standard is mandatory.
This is one of the most frequent decisions in API 594 check valve selection. Both types share identical internal mechanisms; the difference lies solely in the body configuration and mounting method.
| Feature | Wafer Type | Lug Type |
|---|---|---|
| Mounting | Clamped between two flanges with through-bolts | Threaded lugs allow independent bolting to each flange |
| Dead-end Service | Not suitable (cannot hold pressure with one side blanked) | Suitable (can be bolted to upstream flange independently) |
| One-side Maintenance | Not possible (valve shifts when bolts are loosened) | Possible (downstream piping can be removed without disturbing the valve) |
| Cost | Lower | Approximately 10–15% higher |
| Weight | Lighter | Slightly heavier |
Key Decision Point: If the pipe end has future expansion plans, or if downstream equipment requires maintenance without system shutdown, the lug-type is the only viable choice. For routine routing with no such requirements, the wafer type offers better economy.
Pressure Class and Material
Select the appropriate pressure class (Class 150/300/600, etc.) based on the maximum operating pressure and temperature of the system. For body materials, A216 WCB (carbon steel) is the general choice for oil and gas services, while A351 CF8M (stainless steel) or duplex stainless steel is required for corrosive media.
Flow Velocity and Critical Velocity
A check valve requires sufficient fluid kinetic energy to fully open the disc. If the flow velocity falls below the critical velocity, the disc cannot reach its fully open position. It will then operate in a partially open state, which invalidates pressure drop calculations and may cause disc chatter—a rapid oscillation that damages the seat.
During selection, always verify the manufacturer's Cv values and critical velocity data to ensure the disc achieves full opening at the minimum normal flow rate.
Water Hammer Protection
When a pump shuts down, the returning water column in the pipeline is suddenly stopped by the check valve, generating a pressure shock wave known as water hammer. Spring-assisted quick-closing check valves can effectively reduce this impact by completing the closure before the reverse flow velocity fully develops.
Flow Direction: The arrow marked on the valve body must align with the pipeline flow direction.
Mounting Orientation: API 594 dual-plate check valves are typically recommended for horizontal installation or vertical upward flow. Vertical downward flow installation should be avoided, as this orientation adds the disc's own weight to the spring load, accelerating wear.
Wafer Valves: Use full-face flange gaskets during installation and tighten bolts to the torque sequence and values specified by the manufacturer. Over-torquing can deform the valve body and cause disc binding.
Pipe Support: Install independent pipe supports near the valve to prevent the pipeline weight from bearing directly on the valve body, which could cause distortion.
API check valves must undergo inspection and pressure tests per API 598 before shipment. The three main tests are:
| Test Type | Test Medium | Pressure | Purpose |
|---|---|---|---|
| Shell Test | Water or non-corrosive liquid | 1.5 × CWP | Verifies integrity of pressure-containing parts (body and bonnet) |
| High-pressure Seat Test | Water or non-corrosive liquid | 1.1 × CWP | Verifies seat sealing at operating pressure |
| Low-pressure Seat Test | Air or gas | 0.4–0.7 bar (6–10 psi) | Verifies seat sealing under low-pressure conditions |
Acceptable leakage rates vary by rating. Metal-seated check valves follow Rate B, which permits a defined allowable leakage; soft-seated valves require zero visible leakage.
Routine maintenance should focus on the following areas:
Periodic Inspection: Check the valve body for external corrosion and flange connections for any signs of leakage.
Acoustic Monitoring: During operation, persistent clicking or hammering sounds (chatter) indicate insufficient flow velocity or potential sizing issues.
Debris Removal: Weld slag, rust, and other debris in the line can lodge in the seat area, causing internal leakage. Periodic disassembly and cleaning may be necessary.
Spring Inspection: If the disc exhibits delayed closure or fails to close completely, spring fatigue may have occurred and replacement is recommended.
Proper selection and use of API check valves revolves around five key points: understanding your application (API 594 vs. API 6D), choosing the right mounting style (wafer vs. lug), verifying flow velocity to ensure full opening, adhering to strict testing protocols, and conducting regular maintenance. Following this systematic approach ensures long-term, reliable performance under even the most demanding industrial conditions.
