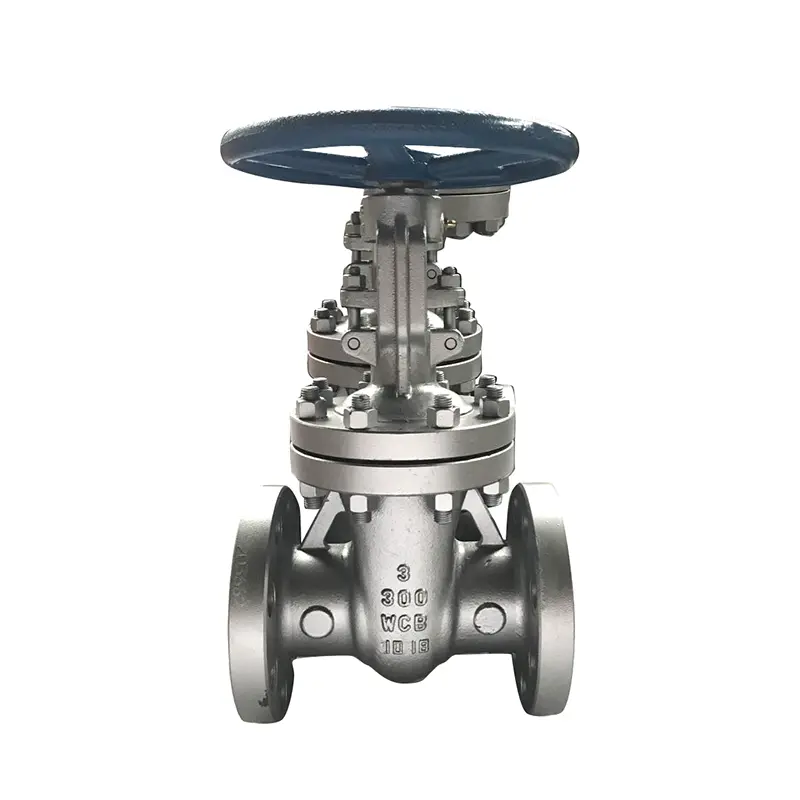

Cast Carbon Steel Gate Valves

The cast carbon steel gate valves of Hanno Valve is made for WCB material, according to API600 standard, with bolted bonnet, rising stem with handwheel, flange connection type. Hanno Valve adopt to precoated sand mould technology to make castings for 2’’ to 12’’, so the castings have good quality and accurate dimension.

Hanno Valve cast carbon steel gate valves widely used in petroleum, chemical, heat supply, gas, coal chemical industry and other field, with good quality and competitive price, well received by domestic and foreign customers.

What’s the cast carbon steel grate valves?

The cast carbon steel grate valves used as regulating and shut-off devices on body pipelines

The opening and closing component of cast steel gate valve is the gate plate, and the movement direction of the gate plate is perpendicular to the fluid direction. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled. The gate valve has two sealing surfaces, and the most commonly used mode gate valve has two sealing surfaces that form a wedge shape. The wedge angle varies with the valve parameters, usually 50 degrees, and 2 ° 52 'when the medium temperature is not high. The gate of a wedge gate valve can be made as a whole, called a rigid gate; It can also be made into a gate that can produce slight deformation to improve its processability and compensate for the deviation of the sealing surface angle during the processing. This type of gate is called an elastic gate.

Product Parameters

Materials

Product Photos
