CS Gate Valves

When sourcing CS Gate Valves for industrial pipeline systems, Hanno Valve offers a reliable solution that combines durability with performance. The internal medium channel of Hanno Valve CS Gate Valves is straight through, meaning the flow direction remains unchanged when the medium passes through. This design significantly reduces fluid resistance, lowers energy consumption, and improves overall system efficiency.

Product Features & Technical Advantages

Durable Carbon Steel Construction

Unlike standard gate valves, Hanno Valve CS Gate Valves are manufactured from high-strength carbon steel, with the opening and closing components designed as gate valves. The movement direction of the gate is perpendicular to the fluid flow, allowing only fully open or fully closed positions—no adjustment or throttling function, ensuring reliable sealing.

Precision Sealing Surfaces

Each CS Gate Valve features two sealing surfaces formed into a wedge shape. The wedge angle varies according to valve parameters. The gate can be made as a rigid integral piece or as an elastic gate that allows slight deformation. This elastic design improves processability and compensates for minor deviations in sealing surface angle during manufacturing.

Precision Casting for Reliable Sealing

The carbon steel valve body of Hanno Valve CS Gate Valves is precision cast. The precise geometric dimensions ensure excellent sealing performance without requiring any finishing work inside the valve body. This not only enhances quality but also shortens delivery time.

Key Materials (for reference)

Body: 25L

Seat Surface & Disc: 13Cr / 25L+13Cr

Stem: 2Cr13

Bonnet & Gland Flange: 25L

Packing: Expanded graphite

Gasket: 304+Graphite

Bolts & Nuts: A193-B7 / A194-2H

Materials

Why Choose Hanno Valve – Your Trusted CS Gate Valves Manufacturer

With 25 years of valve manufacturing experience, Zhejiang Hengnuo Valve Manufacturing Co., Ltd. (parent company of Hanno Valve) is located in the Chinese industrial valve manufacturing base—Zhejiang Lishui Bihu Valve Industry Area, covering a production area of 18,000㎡. The company employs 150 staff members, including over 32 senior technicians. Main products include gate valves, check valves, globe valves, and power station valves.

1. In-House Foundry for Quality Control

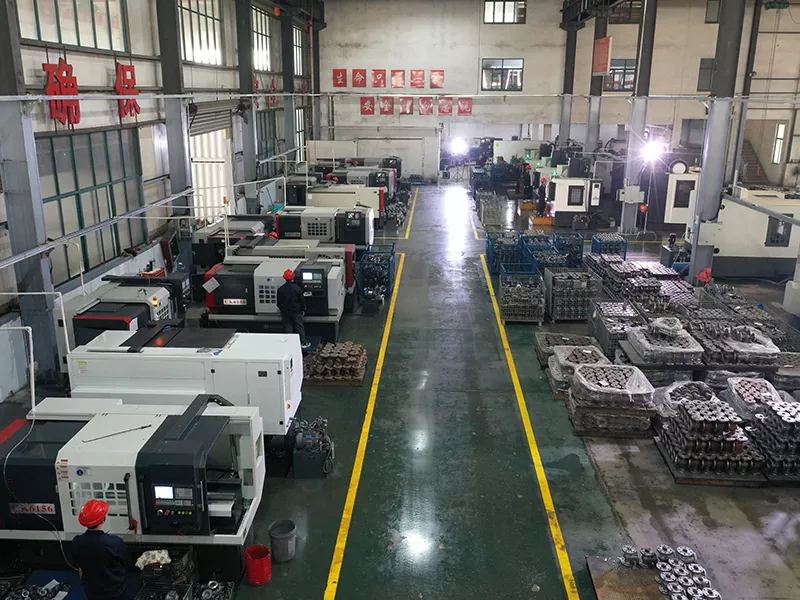

Unlike many suppliers, Hanno Valve operates its own foundry using the most advanced pre-coated sand technology. This provides high-quality, high-precision castings directly for the factory, greatly improving both product quality and production lead time.

✅ 100% quality rate

✅ 40+ professional equipment sets

2. OEM & ODM Customization Services

We understand that different projects require different specifications. Hanno Valve offers flexible OEM and ODM services for CS Gate Valves, including custom sizes, pressure ratings, end connections, coatings, and marking.

3. After-Sales Service & Delivery Commitment

Customer satisfaction is our priority. We provide:

• 12-month warranty against manufacturing defects
• Technical support for installation and troubleshooting
• Fast spare parts supply for all Hanno Valve CS Gate Valves
• On-time delivery with shipment tracking available

4. Global Cooperation & Exhibition Presence

Hanno Valve has partnered with clients across Europe, Southeast Asia, the Middle East, and the Americas. We regularly participate in international valve industry exhibitions to showcase our latest CS Gate Valves and connect with global buyers.
