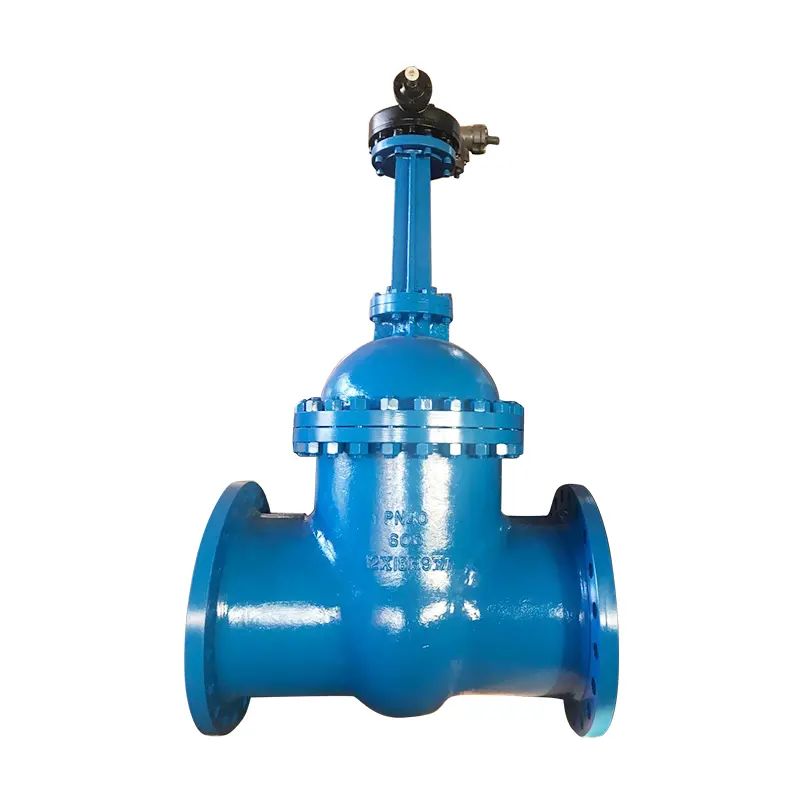

Stainless Steel Gate Valves

Hanno Valve’s stainless steel gate valves are widely used in piping systems as shut-off devices; the gate moves in a linear, vertical motion driven by the valve stem. As a shut-off valve, the gate moves perpendicular to the direction of fluid flow; consequently, the valve is designed for fully open or fully closed operation and is not suitable for flow regulation or throttling.

This series of gate valves typically features two sealing surfaces. The most common design is the wedge-type gate, where the sealing surfaces form a wedge angle. This angle varies based on valve specifications—commonly 5°, though 2°52' may be used for lower-temperature applications. The gate can be manufactured as a solid (rigid) unit or as an elastic gate capable of slight deformation; the latter effectively compensates for angular deviations in the sealing surfaces during manufacturing, thereby improving fit and sealing reliability.

Hanno Valve’s stainless steel gate valves are categorized by material—primarily 304, 316, and 321 stainless steel—and utilize model designations such as "Z41H-16P" to facilitate engineering selection and replacement.

Hanno Valve’s Stainless Steel Gate Valves Features

1. The selection of materials is meticulous, in compliance with relevant domestic and international standards, and the overall quality of the materials is high.

2. Meets the requirements of advanced domestic and international standards, with reliable sealing, excellent performance, and beautiful appearance.

3. The sealing pair is advanced and reasonable, and the sealing surfaces of the gate and valve seat are made of Stellite cobalt based hard alloy with different hardness by welding. The sealing is reliable, with high hardness, wear resistance, high temperature resistance, corrosion resistance, good scratch resistance, and long service life.

4. The valve stem has undergone quenching and surface nitriding treatment, exhibiting excellent corrosion resistance, abrasion resistance, and wear resistance.

5. Adopting a wedge-shaped elastic gate structure, thrust bearings are installed on the medium and large diameters, with low friction, and equipped with manual impact for easy and smooth opening and closing.

Materials

Why Choose Hanno Valve Stainless Steel Gate Valves

In-House Foundry for Quality Control Zhejiang Hengnuo Valve Manufacturing Co., Ltd., the maker of Hanno Valve, has 25 years of valve manufacturing experience. The company is located in the Zhejiang Lishui Bihu valve industry area, with a production area of 18,000 square meters. Hanno Valve operates its own foundry using advanced precoated sand technology. This ensures high-quality, high-precision castings directly for stainless steel gate valve production, significantly improving both quality and delivery times.

Professional Team and Reliable Output The company has 150 employees, including more than 32 senior technicians. Every Hanno Valve Stainless Steel Gate Valve is strictly controlled from design and casting to machining and assembly.

High Quality Rate and Advanced Equipment With over 40 pieces of professional equipment and a target quality rate of 100 percent, Hanno Valve products are widely used in power stations, chemical plants, oil and gas, and water treatment industries.

Typical Material Configuration (Text Format)

• Body: 12Cr18Ni9Ti

• Seat Surface: Stellite (STL)

• Disc: 12Cr18Ni9Ti + Stellite

• Stem: F304

• Gasket: 304 + Graphite

• Nut: A194-8

• Bolt: A193-B8

• Bonnet: 12Cr18Ni9Ti

• Sealing Surface: 12Cr18Ni9Ti

• Packing: Expanded Graphite

• Gland Flange: 12Cr18Ni9Ti

• Yoke: 12Cr18Ni9Ti

• Box: Molectron (electric/electronic actuator module as needed)

Note: Hanno Valve also offers customized material options including CF8, CF8M, CF3, and CF3M based on specific working conditions.
