Why Are Low Temperature Gate Valves Critical for Cryogenic and LNG Applications?

In industries such as LNG production, petrochemical processing, and air separation, pipelines must handle media at extremely low temperatures—often below -100°C. Standard valves can become brittle, lose sealing integrity, or fail entirely under these conditions. The Low Temperature Gate Valves from Hanno Valve are specifically engineered to maintain reliable performance in cryogenic environments. This article examines the design features, material selection, and quality standards that make these valves a trusted choice for demanding low-temperature applications.

The Challenge of Low-Temperature Fluid Control

As global demand for liquefied natural gas (LNG) and industrial gases continues to grow, the need for reliable cryogenic fluid control systems has never been greater. Pipelines carrying ethylene, propylene, liquid nitrogen, and other cryogenic media operate at temperatures as low as -196°C. At these extremes, standard carbon steel valves become brittle and prone to fracture. Sealing materials can lose elasticity, leading to leaks. Specialized valves are required to ensure safety, reliability, and long service life.

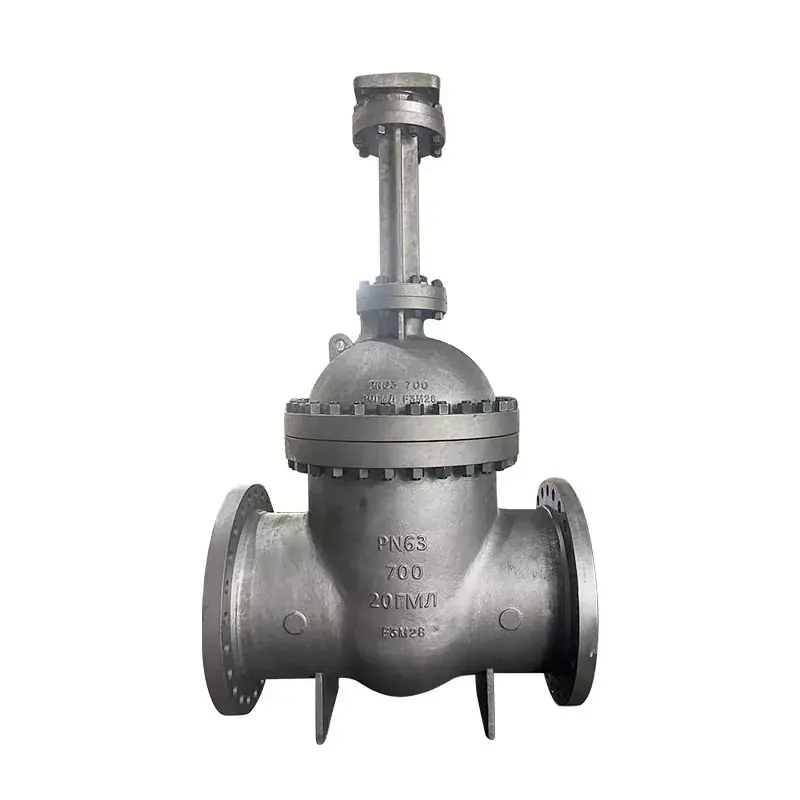

The Low Temperature Gate Valves from Hanno Valve are designed to address these challenges. Manufactured from carefully selected low-temperature resistant materials such as stainless steel, nickel-based alloys, LCB, LF1, LF3, LC3, and CF8, these valves maintain mechanical strength and impact resistance even at cryogenic temperatures. This article explores their key features, material specifications, and the industries where they are most commonly used.

Technical Specifications

Below is a summary of the key specifications for the Low Temperature Gate Valves from Hanno Valve.

Material Selection and Structural Design

The performance of a low-temperature valve depends heavily on the materials used in its construction. Hanno Valve selects materials specifically for their ability to maintain mechanical properties at cryogenic temperatures.

The sealing surfaces of the gate and valve seat are welded with hard alloy materials to improve wear resistance and extend service life. This overlay also enhances corrosion resistance, which is critical in applications where cryogenic media may contain impurities or moisture.

Bonnet Design Options

Hanno Valve offers two bonnet configurations for the Low Temperature Gate Valves, allowing customers to select the most suitable option for their specific operating conditions.

Bolted Bonnet Design

The valve body and bonnet are connected using high-strength bolts and nuts. A 316 flexible graphite gasket provides reliable sealing. For applications requiring additional sealing integrity, metal ring sealing structures are available. This design is suitable for general cryogenic applications where access for maintenance is anticipated.

Welded Bonnet Design

The welded bonnet structure uses threaded connection combined with full welding sealing technology. This design provides enhanced sealing reliability for critical cryogenic applications and hazardous media transportation systems. It is particularly recommended for applications where leakage prevention is a top priority.

Applications Across Industries

The Low Temperature Gate Valves from Hanno Valve are used in a variety of cryogenic and low-temperature applications:

• LNG projects – For controlling the flow of liquefied natural gas during storage, transport, and regasification.

• Petrochemical industry – Handling ethylene, propylene, and other light hydrocarbons at cryogenic temperatures.

• Industrial gas systems – Used in the production and distribution of liquid nitrogen, liquid oxygen, and liquid hydrogen.

• Air separation plants – For controlling cryogenic fluids in the separation of atmospheric gases.

• Power stations – In combined cycle and other power generation systems that utilize cryogenic fluids.

• Cryogenic storage systems – In tanks and transfer systems for storing and moving liquefied gases.

Frequently Asked Questions (FAQ)

Q: What temperature range are these valves suitable for?

A: The valves are designed for operating temperatures from -46°C to -196°C, making them suitable for most cryogenic and low-temperature applications.

Q: What materials are used in the construction of low-temperature gate valves?

A: The valves are manufactured from materials such as LCB, LF1, LF3, LC3, CF8, and stainless steel, selected for their impact resistance and mechanical properties at low temperatures.

Q: What is the difference between bolted and welded bonnet designs?

A: The bolted bonnet design allows for easier maintenance and access. The welded bonnet design provides enhanced sealing reliability, making it suitable for critical or hazardous applications.

Q: What industries commonly use these valves?

A: They are widely used in LNG projects, petrochemical processing, industrial gas production, air separation, and power generation.

Q: What certifications does Hanno Valve hold?

A: Hanno Valve holds ISO 9001, ISO 14001, CE, API 600, and Russia TC 010/032 certifications.

Q: Are the valves tested before shipment?

A: Yes. Each valve undergoes pressure testing and inspection for sealing performance, material quality, and dimensional accuracy before delivery.

Conclusion

The Low Temperature Gate Valves from Hanno Valve are engineered for reliable performance in the most demanding cryogenic environments. With materials selected for impact resistance at temperatures down to -196°C, robust sealing structures, and comprehensive quality testing, these valves offer a dependable solution for LNG, petrochemical, and industrial gas applications. Backed by over 25 years of manufacturing experience and multiple international certifications, Hanno Valve provides products that meet the rigorous requirements of global industry. For detailed technical data, pricing, or to discuss a custom order, feel free to contact us, the Hanno Valve sales team is available to provide professional support and competitive solutions.
